This is mainly used for a short-distance conveyance of scattered objects like grain, fertilizer, cement, powdered coal. This is good for the airtightness of a conveying object, and an input and this can be installed with more than one input and output holes on the conveyor.
This conveyor is appropriate to the process that needs a mixing, heating, cooling or drying work.

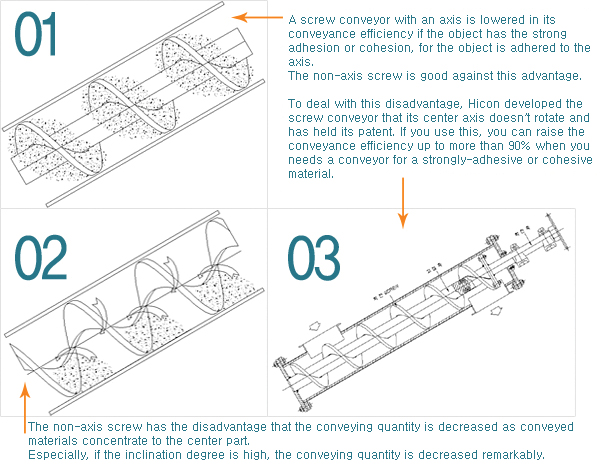

- This is of structure with no center rotation axis to have bigger conveyance capacity.
- This is of the single beam structure that can support with a drive axis' bearing without a beam, and this is not influenced by the deformation by the axis's sag or eccentricity.
- This is of the single beam structure that doesn't need a hanger for it is not influenced by the axis' sag, and the lengthof a conveyor can be extended (extendable up to 25 ~ 30 m).
- For this has no axis and hanger, this is appropriate to convey all objects like the material that has the strong adhesion or cohesion, the material that has a shape, the solid and etc.
- This can be operated continuously. And because this is not influenced by the object's solidification adherent condition, it is optimal in conveying sludge.
- Its big conveying capacity is appropriate to the conveyance of coarse materials in a sewer treatment facility.

Utility Model No. 0404130
